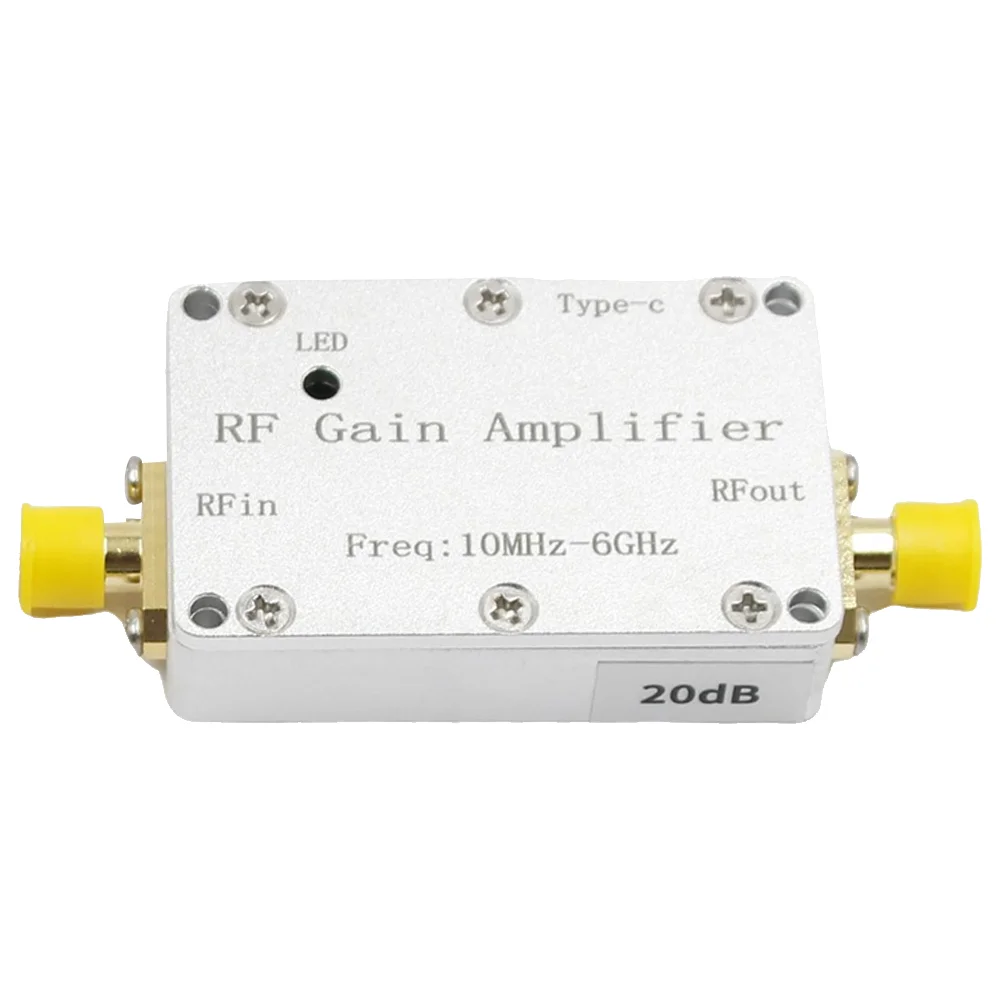

Specification:
Origin: Mainland China
DIY Supplies: ELECTRICAL
Working voltage: +5V single power supply;
Power interface: Type-c interface;
Working current: 10dB-50mA; 20dB-75mA; 30dB-80mA; 40dB-80mA
Working frequency: 10M-6GHz;
Gain: (see measured curve);
P1dB output power: +10dBm@2GHz; +12dBm@2GHz; +18dBm@2GHz; +18dBm@2GHz;
Noise coefficient: 4.5dB;
Input and output interface: SMA (external screw inner hole)
Shell material: CNC aluminum alloy
Product size: about 65.00x30.00x12.00mm
Product size: 2.56x1.18x0.47inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
