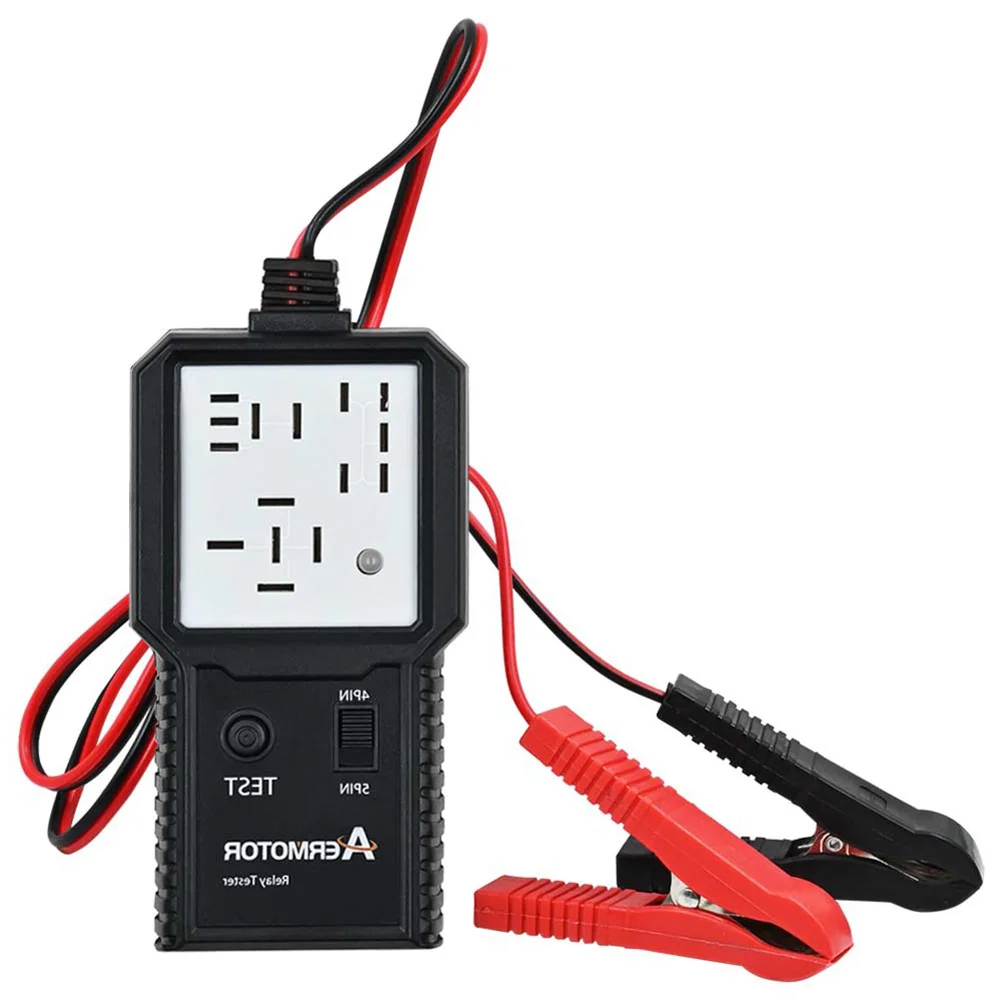

Specification:
Origin: Mainland China
Product size: 125x65mm/4.92x2.56inch
Product packaging size: 150.00x130.00x35.00mm/5.91x5.12x1.38inch
Product voltage: 12/24V
Operation instructions:
1. During the test, the red clip is clamped to the positive electrode of the battery, and the black clip is clamped to the negative electrode of the battery.
2. When testing a 12V relay, it needs to be connected to a 12V battery, and when testing a 24V relay, it needs to be connected to a 24V battery.
3. After connecting to the power supply, the device lights red and can be inserted into the relay.
4. Test the 4-pin relay to dial the switch to 4PIN, test the 5-pin relay to dial the switch to 5PIN
5. After connecting to the relay and adjusting the pin switch, you can press the button
6. If the pin position is wrong or the relay is damaged during the test, the red LED light will light up during the test.
7. When the pin is set correctly, the tester will light up with a green LED light and blink 10 times with a green light to indicate that the relay is normal.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
