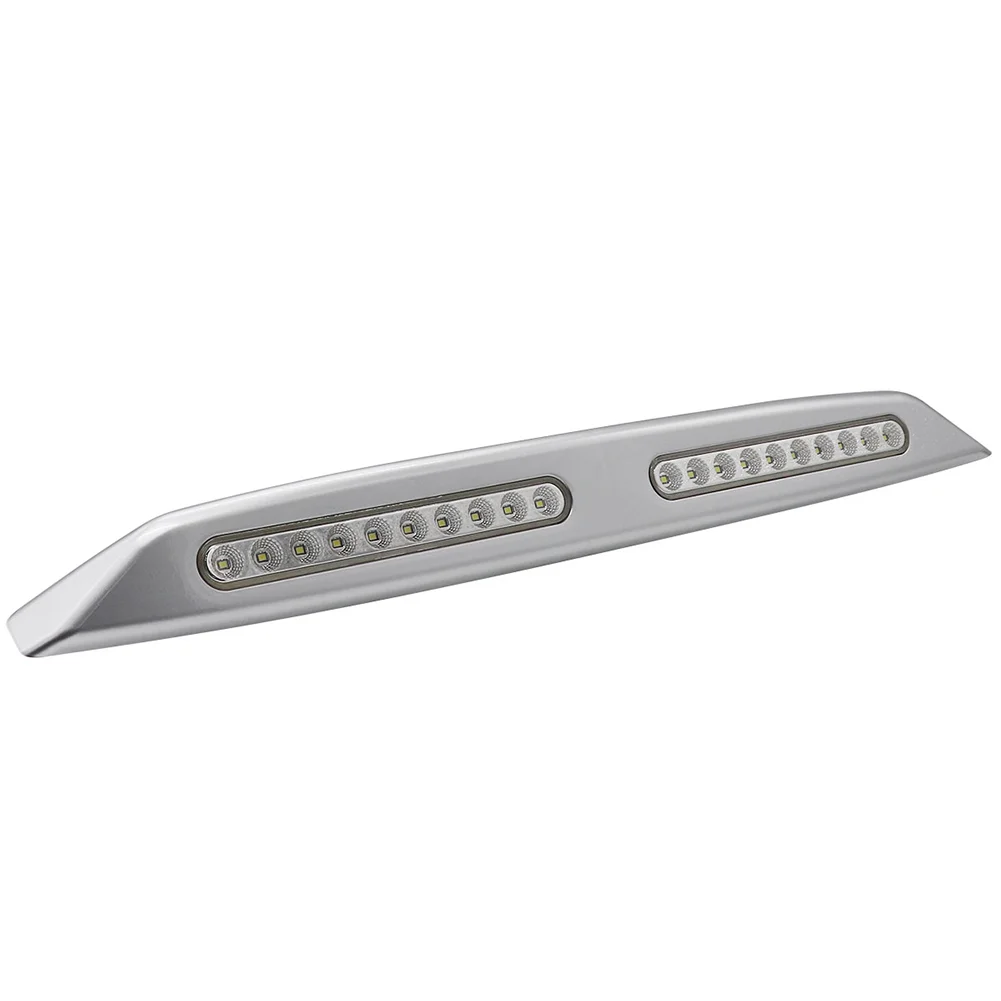

12V 6W Camper Awning RV LED Light Bar 20 LED Caravan Exterior Porch Camping Lamp

Specification:
Model: D4395W
Color: Silver
Voltage: 12V
Product power: 6W
Waterproof grade: IP56
Material: UV ASA
Light color: White
Lumen: 700LM+-20LM
Light bead: 20 high light LED bead
Wide use: saloon car, yacht door, saloon car awning under the lighting use
Operating temperature: -20℃~+
Line length: 20CM/7.9in black line red line
Lighting control: wiring mode control (this product has no switch)
Size: 55*5.2.*4.4CM/21.7X2X1.7in
Packing size: 56*6*6CM/22x2.4x2.4in

Connection mode: red wire to positive pole black wire to negative pole (four wires in total)
Connection mode 1: can be connected to a switch, two red wire to the positive pole, two black wire to the negative pole. This mode controls both sides of the lamp at the same time (can not achieve one side of the lamp)
Wiring mode 2: two switches can be connected, the red and black lines of the left light are respectively connected to the positive and negative terminals of the switch, and the red and black lines of the right light are connected to the positive and negative terminals of another switch. This mode can be respectively controlled and controlled on both sides of the lamp, and can also be realized at the same time.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
