Specification:
Certification: NONE
Origin: Mainland China

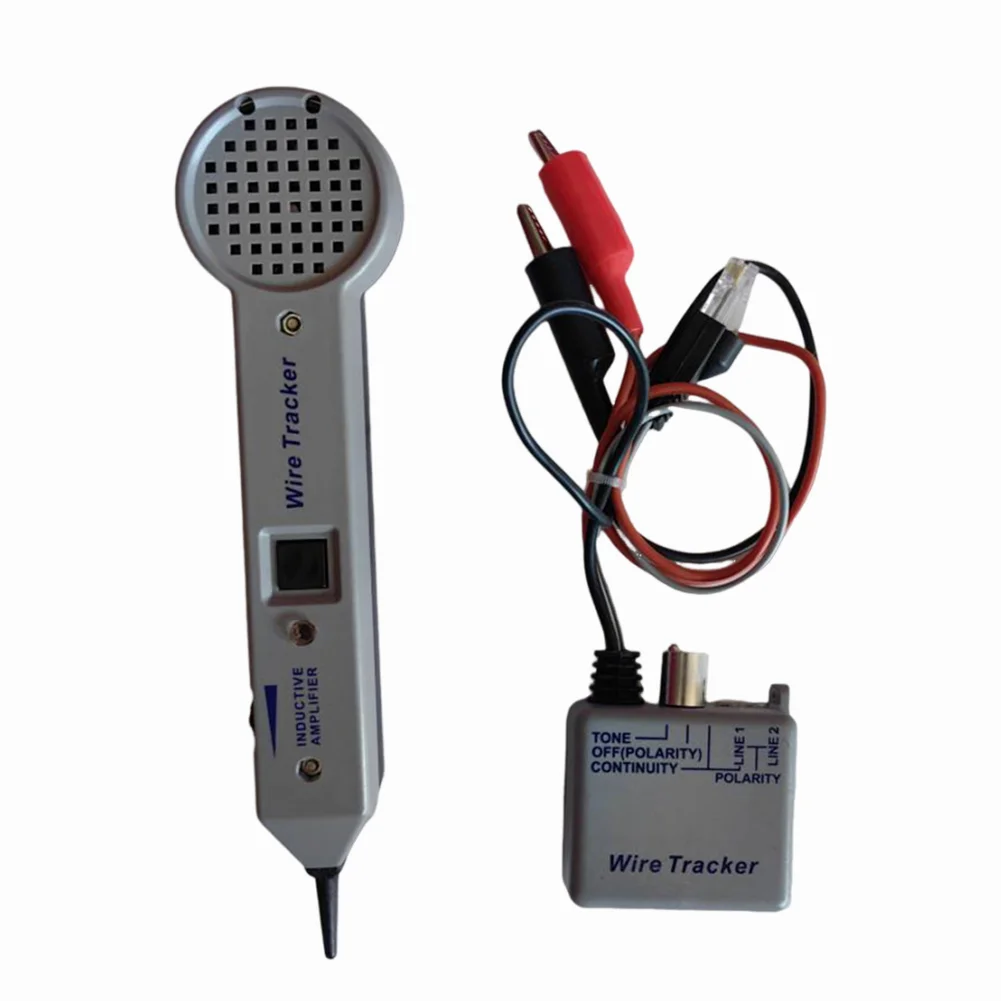

Model Number: Cable Tester Tone Generator
Material: Plastic
Model: 200EP
Gain: nominal 30dB
Input impedance: nominal 100M ohms
Metal needle tip: 0 ohms
Plastic prompt: 300 ohms
Battery: 1 X 9V DC battery (NEDA 1604, JIS 006P, or IEC 6LR61) (excluding batteries)
Battery life (nominal): 50 hours
Temperature: 0 ℃ -50 ℃
Fahrenheit: 32 ℉ -122 ℉
Weight: approximately 300 grams/10.6 ounces
Size: approximately 231x55x28mm/9.09x2.16x1.102inch
Application: Widely used for the maintenance and testing of cables and wires.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
