Specification:
Battery type: 9V battery (6F22) (not included, need to be prepared by yourself)
Working current: <50ma
Shutdown current: <10UA
Automatic shutdown time: 3 minutes
Casing material: ABS
Product size: about 150.00x67.00x30.00mm
Product size: 5.91x2.64x1.18inch
Detection mode selection:
Stud mode:
In stud mode, there are 3 scanning modes to choose from to suit the scanning thickness surface:
1/2" scanning mode can detect 1/2 inch (13mm) deep.
1" scanning mode can detect 1 inch (25mm) deep.
1 1/2" scanning mode can detect 1 1/2 inches (38mm) deep.
If you don't know the detection depth, it is recommended to use
1/2" scanning mode first. When the 1/2" scan mode fails to detect, use the 1" or 1
1/2" scan mode instead.
Metal Mode:
It can detect magnetic metals up to 3.2 inches (80mm) deep (15mm diameter galvanized steel pipe)
It can detect non-magnetic metals up to 2.4 inches (60mm) deep (13mm diameter copper pipe).
AC Mode:
It can detect unshielded AC live wires up to 2 inches (51mm) deep
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Package Content:

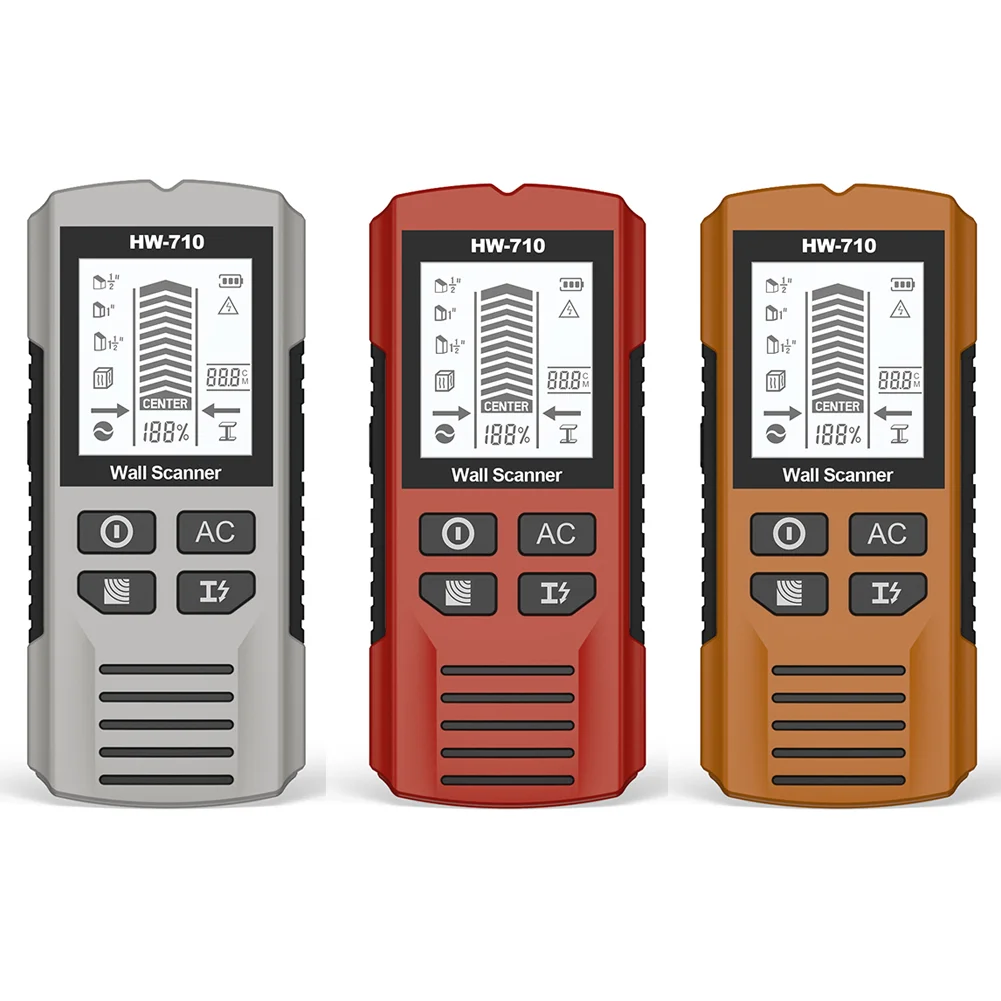

1 X Wall Metal Detector
1 X Instruction Manual
Selling point content
6-in-1 Stud Finder Wall Scanner Green Backlight Electronic Stud Detector Stud Finder Tool for 1-1/2 Inch Drywall Stud Center Detecting
Feature:
1.Advanced Detection Modes: The stud finder wall scanner offers multiple scanning modes, from 1/2 inch to 1 1/2 inch stud detection, allowing you to locate wooden and metal studs at varying depths up to 38mm. Perfect for all your construction and renovation projects.
2.Precise Electronic Stud Detector Capabilities: With cutting-edge technology, our device accurately identifies studs within walls, detecting even the deepest wood or metal structures. Its green backlight ensures clear visibility of readings in any lighting conditions.
3.Enhanced Stud Locator Versatility: This tool features a metal detection mode that identifies magnetic and non-magnetic metals at deeper levels, up to 80mm, ensuring comprehensive scanning coverage for safety and accuracy in diverse applications.
4.Reliable Wall Detector Performance: With an advanced AC mode, this device detects live, unshielded electrical wires up to 51mm deep, enhancing user safety by preventing accidental contact during installations, hangings, or repairs.
5.User-Friendly Stud Finder Tool Design: Equipped with a low battery indicator, this scanner ensures uninterrupted operation. Its ergonomic design makes it comfortable to handle, providing ease of use for both DIY enthusiasts and professional contractors.
