Specification:
Origin: Mainland China
Condition: New

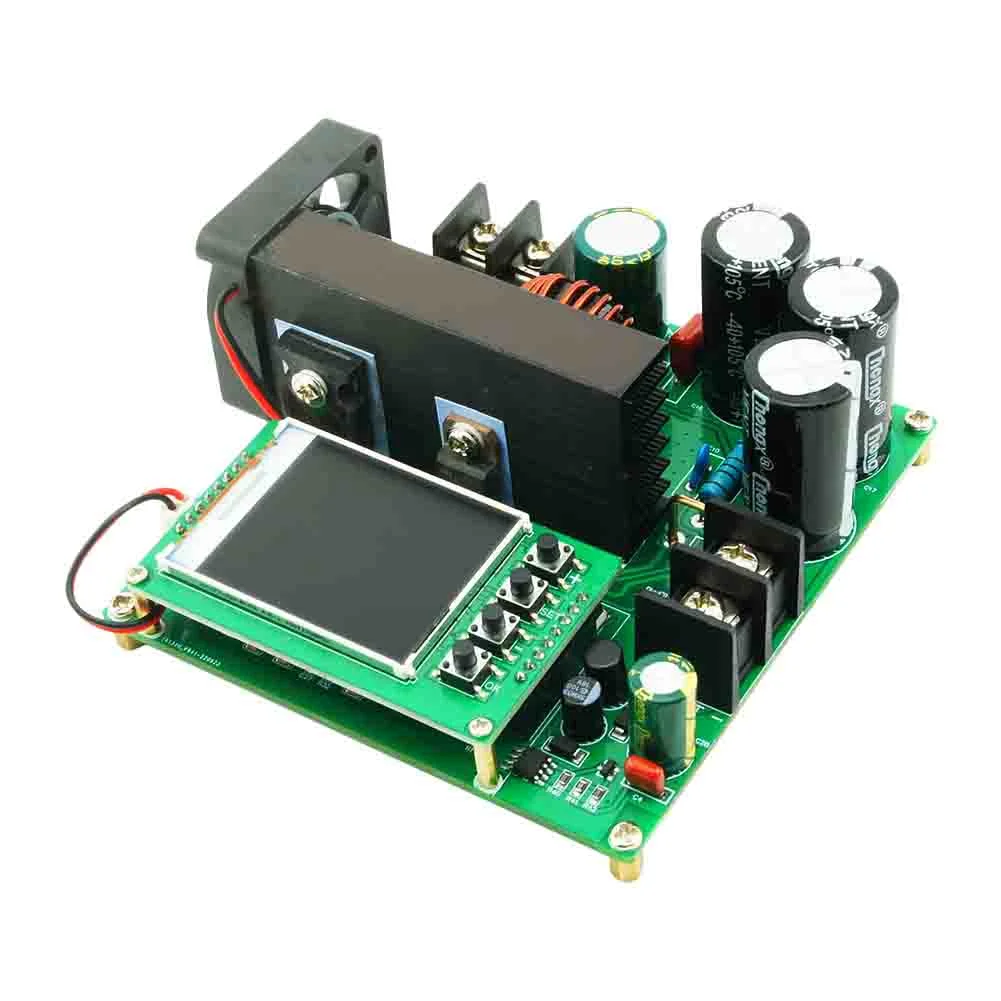

Model Number: Boost Module
Input voltage (U-IN): DC8V-60V
Input current: 0-15A
Output voltage (U-OUT): 10V-120V
Output current: 0-15A
Conversion efficiency: 85%
Operating frequency: 150KHz
Short circuit protection: 20A fuse (non self recovery)
Operating temperature: - 40 ℃ - 85 ℃
Control mode: Digital control + LCD display
Voltage regulation display: 0.00V-00.0V-000V
Current regulation display: 0.00A-00.0A
Output ripple: ≤ 50mV
Stored array: 10 groups
Material: PC + metal
Size: 48x100x110mm/1.89x3.94x4.33in
Operation method:
1. Start up boost:
A. Press and hold the OK key for 10 seconds to enter the interface and select AUTO-OFF to manually start boosting. Select AUTO-ON to automatically start boosting.
B. Click OK to start or stop boosting.
2. Setting storage:
In the setting mode, long press the SET key for 10 seconds to enter the data storage interface. You can select a total of 10 groups of data from 0 to 9 through the up and down keys, and press the SET key to save the settings.
3. Call access array:
Press and hold the SET key for 10 seconds under the general interface to enter the storage and retrieval interface. You can select a total of 10 data groups from 0-9 through the up and down keys. Press the SET key to determine the retrieval.
