Specification:
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Digital display
Dimensions: 170*25*22mm
Model Number: Mini Digital Multimeter Pen
Measuring Resistance Range: 0.1-600MΩ
Measuring Capacitance Range: 10nF-60mf
Operating Mode: auto
AC Voltage: 0.8-1000V
DC Voltage: 0.8-700V
Is Smart Device: no
Function Range Resolution Precise
AC voltage 0.8-1000V 0.001-1V ±(1.2%+5d)
DC voltage 0.8-700V 0.001-1V ±(1.5%+8d)
Resistance 0.1-600MΩ 0.1Ω-10kΩ ±(3.5%+8d)
Capacitance 10nF-60mf 10pf-100uf ±(1.5%+5d)
Temperature ℃ 20℃ -50℃ 1℃ ±(1.0%+5℃)＜50℃
Temperature℉ 0℉-122℉ 1℉ ±(0.75%+5℉)＜122℉
Voice broadcast: yes
data retention: yes
Phase sequence detection: yes
Flashlight: yes
Zero FireWire: yes
Screen display: VA color reserve display
NCV induction: yes
Maximum count: 6000 counts
Diode: yes
Buzzer: yes
on and off: yes
Battery type: 1*AAA battery (not included, need to bring your own)
Shell material: ABS
Size: about 170x25x22mm/6.69x0.98x0.86inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

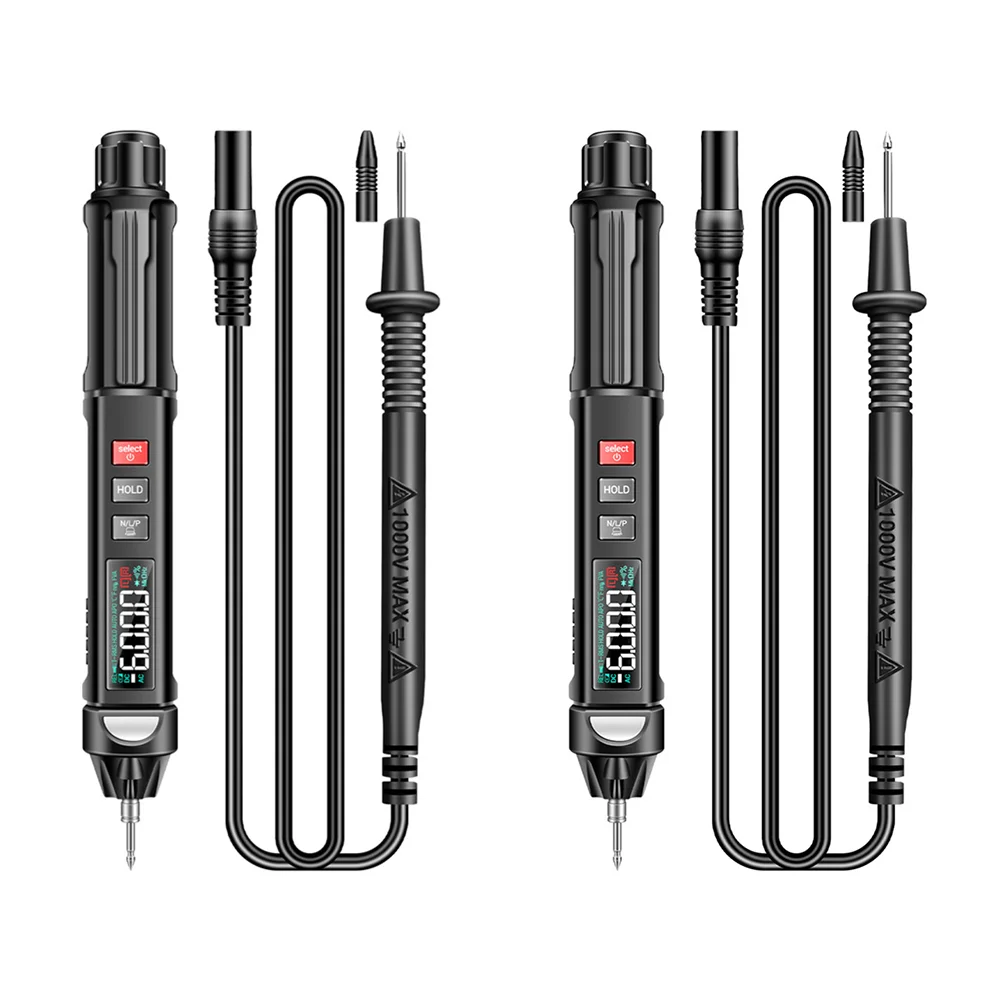

Package Content:1 x Mini Digital Multimeter Pen
Selling point contentANENG A3009 Smart Voice Broadcast Multimeter 6000 Counts Voltage Professional Testing Tool VA Color Reverse Display Mini Digital Multimeter Pen Auto-Ranging Portable for Diode/Continuity/Zero Fire Wire/Phase Sequence Testing for Labo/Hospital/Radio Consultant/Home
Feature:
1. Wide Range of Applications: Our mini digital multimeter pen is suitable for a wide range of applications, making it an ideal tool for laboratories, hospitals, radio consultants, and homes. This feature ensures versatility and adaptability for different testing scenarios.
2. Convenient and Portable: Our pen type intelligent multimeter is compact and easy to carry around, making it convenient for on-the-go activities such as field testing or home repairs. This feature ensures portability and flexibility during testing.
3. and Long-Lasting: Made with high-quality materials, our ac/dc voltage tester is built to last and withstand wear and tear. This feature ensures durability and reliability during long-term use, saving you money in the long run.
4. Automatic Voltage and Resistance Recognition: Our ohm voltage capacitance meter can automatically recognize DC voltage, AC voltage, and resistance, without needing any switches. This feature ensures ease of use and convenience during testing.
5. Multiple Testing Modes: Our smart voice broadcast multimeter features multiple testing modes, including capacitance measurement, diode testing, continuity testing, non-contact voltage testing, zero-fire line measurement, and phase sequence measurement. This feature ensures versatility and adaptability for different testing scenarios, making it an all-in-one tool for various electrical tests.
