Specification:
Certification: NONE
Origin: Mainland China
Item Type: Automobile Ignition Coil Injector

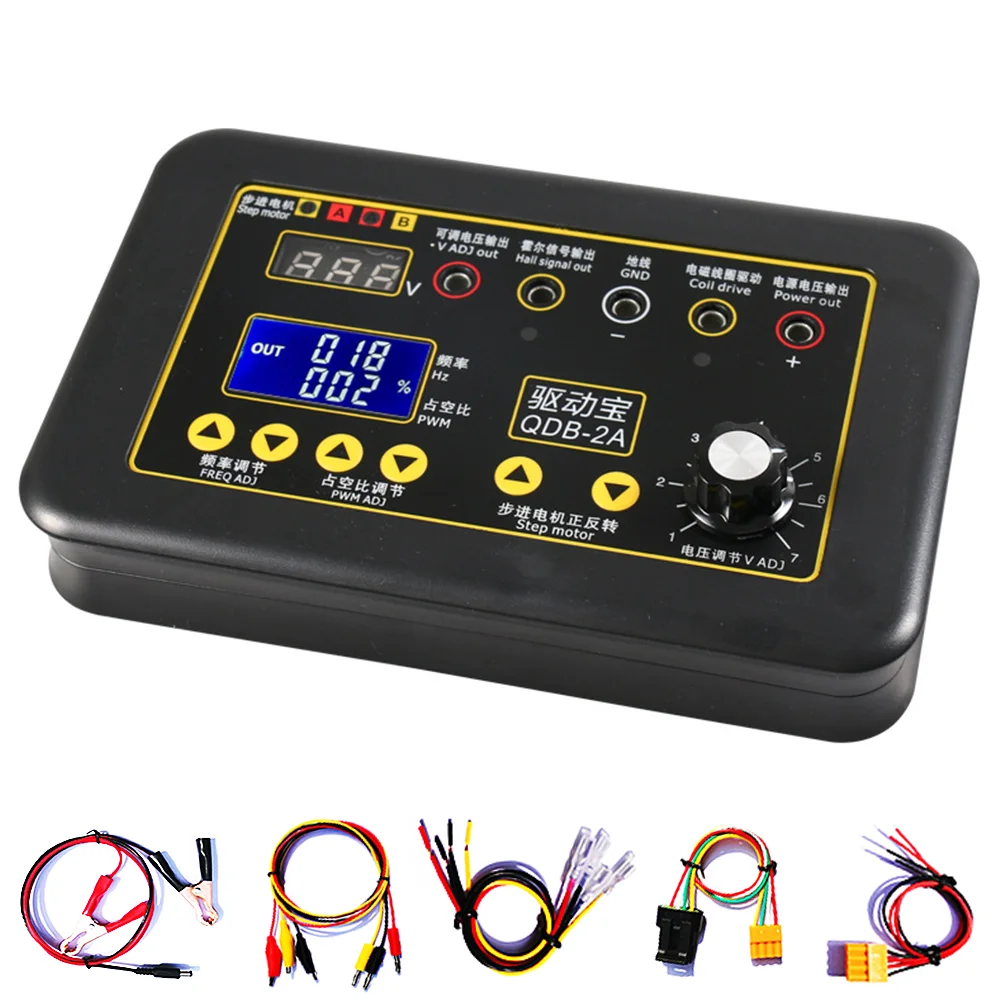

Model Name: Drive Simulator
External Testing Certification: NONE
Item Weight: 400 g
Product size: 157.00x97.00x30.00mm/6.18x3.82x1.18inch
(1) Hall (square wave) signal with adjustable output frequency, amplitude and duty cycle.
(2) Frequency range: 1HZ-100KHZ
(3) Signal amplitude range: 1.3V-12V
(4) Duty cycle range: 1 per cent-100 per cent
(5) Stepping motor drive pulse, forward and reverse control.
(6) External power supply: 12V-24V, it is recommended to use car battery voltage regulator (output current 5A or more is required).
(7) Power supply voltage output socket: voltage equal to external power supply voltage, output current 3A, with over 7 current protection (automatic power off when current is too high).
(8) Adjustable voltage output socket: voltage 1.3V-12V continuously adjustable, current 1A.
(9) Hall signal output socket: output negative duty cycle Hall (square wave) signal
(10) Electromagnetic coil drive socket: duty cycle control, drive current 3A.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
