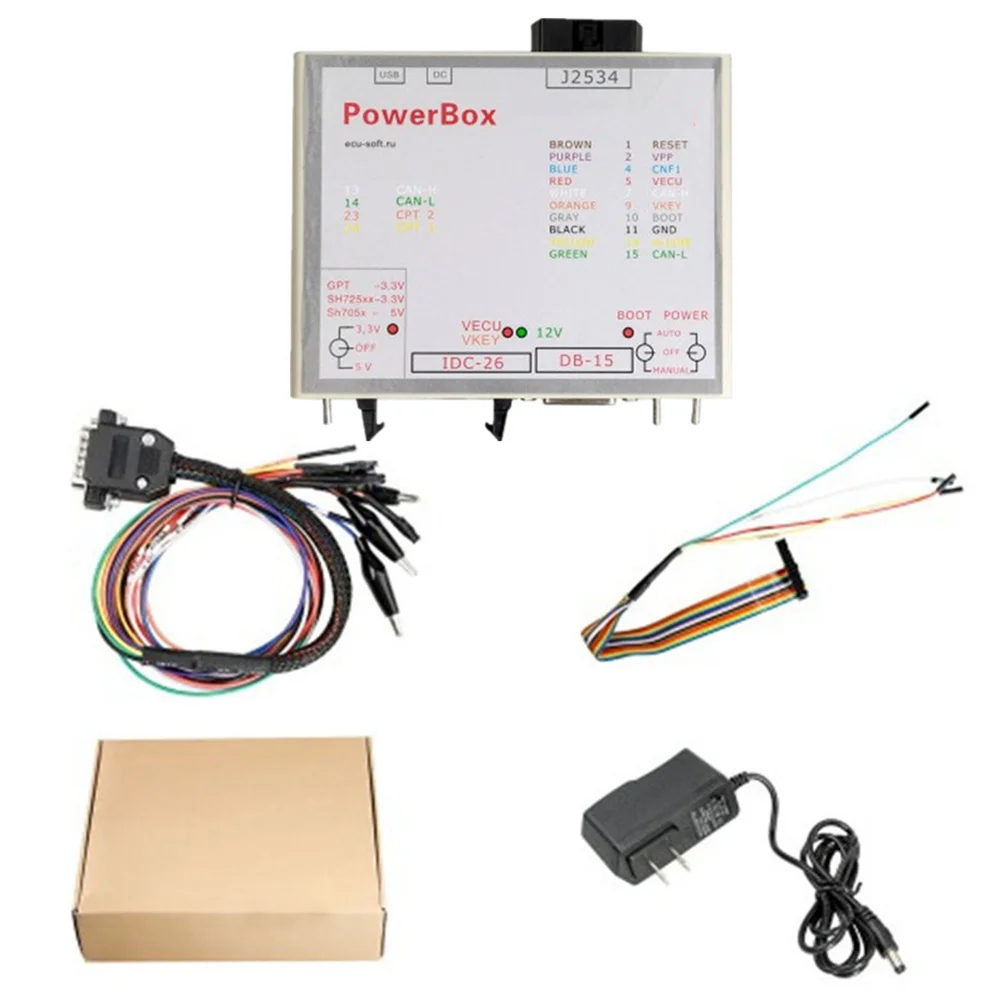

Specification:
Item Type: Code Readers & Scan Tools
Certification: NONE
Origin: Mainland China
Package size: 205x145x85mm/8.07x5.71x3.35inch
It is compatible with the loading programme in automatic mode, loading programme use:
BOOT-OEM12, 12-pin -II;
L-LINE, 15-pin -II.
The tool has a built-in current limiting resistor on the following signal lines:
RESET - 510Ω;
BOOT - 510Ω;
CNF1 - 220Ω.
Lights:
The LED near the 5V/3.3V switch indicates 5V or 3.3V voltage supply.
VECU, VKEY LEDs indicate VECU and VKEY voltage supply.
The 12V LED indicates the supply voltage.
The BOOT LED indicates the voltage on the CNF1 output (the LED is used for both input and output).
Attention: Plugs are US standard
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
