Descriptions:

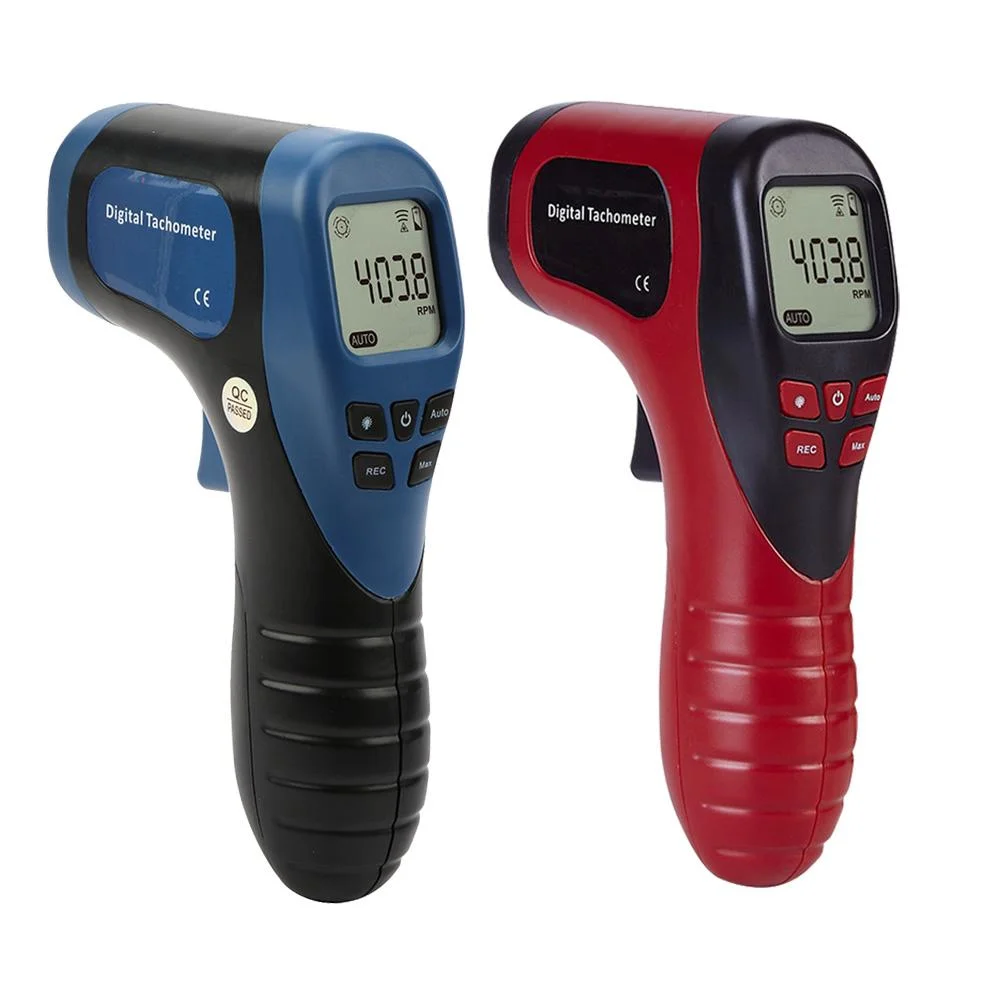

This tachometer is a high quality instrument to measure the revolutions per minute(RPM) with wide measuring range and high resolution. It is featured with high accuracy measurement, quick measuring time and long detecting distance up to 500mm(20 inch) with . This tachometer is very easy to use by applying a reflective tape(included in package) on target object, then aim at the mark by beam. This tachometer has wide range of applications, such as measuring rotating speed of machine, motors, wheels, lathe for metal or wood cutting work, etc.
Features:
1.Non-contact handheld digital tachometer with stable performance.
2.Automatic and manual measurement modes for selection.
3.Wide measuring range(2.5 to 99999 RPM) and high resolution.
4.MAX./MIN./AVG. values record function.
5.Data hold function, data record and recall(60 readings).
6.LCD screen with white backlight, easy to read.
7.Capable of measuring at a distance from 2-20in(50-500mm).
8.Auto and manual power off.
9.Low battery indication.
Specifications:
Color: Blue / Red
Material: ABS plastic
Product Size: 145 * 85 * 35mm/5.71*3.35*1.38"
Product Weight: 90g
Measuring Range: 2.5-99999 RPM
Resolution: 0.1RPM at 2.5~999.9RPM; 1RPM at 1000~99999RPM
Accuracy: ±0.02%+1 digtal
Measuring Distance: 50~500mm / 2~20in
Sampling Time: 0.5s(above 120RPM)
Data Storage Capacity: 60 Readings
Auto Power Off: After 20s
Operation Temperature: 0 to 50℃(32 to 122℉)
Operation Humidity: 10 to 90%RH
Storage Temperature: -10 to 60℃(14 to 140℉)
Storage Humidity: 10 to 75%RH
Power Supply: 1 * 9V 6F22 Battery(NOT Included)
Note:
1. You must stick the reflective tape onto the target object before measuring.
2. Do not point the beam towards eyes directly; safety eyewear is recommended.
3. Do not use it near explosive gases or in other potentially explosive areas.
Package Content:
1 X Digital Tachometer
1 X Reflective Tape
1 X User Manual
Selling point content
Handheld Digital Photo Tachometer RPM Meter 2.5RPM-99999RPM Non-Contact Motor Lathe Speed Gauge Backlit LCD Display Motor Speed Gauge Gun for Measure Lathe Motors
Feature:
1.Efficient Performance Measurement: Utilize the photo tachometer rpm meter to monitor rotating object speeds seamlessly, ensuring accurate performance metrics for all motor-driven applications.
2.Precision Speed Monitoring: The motor lathe speed gauge provides reliable and precise readings, ideal for fine-tuning motor lathe operations and achieving optimal efficiency in your projects.
3.Versatile RPM Tracking: With its adaptable design, the rpm tach speed gauge is perfect for various devices, offering comprehensive speed tracking across multiple machinery types.
4.User-Friendly Interface: Equipped with a clear display, the motor speed meter ensures you can effortlessly read and understand the speed measurements, enhancing overall user experience.
5.Comprehensive Speed Testing: Employ the motor speed gauge gun to perform thorough speed tests, guaranteeing consistent performance and minimizing downtime in industrial settings.
