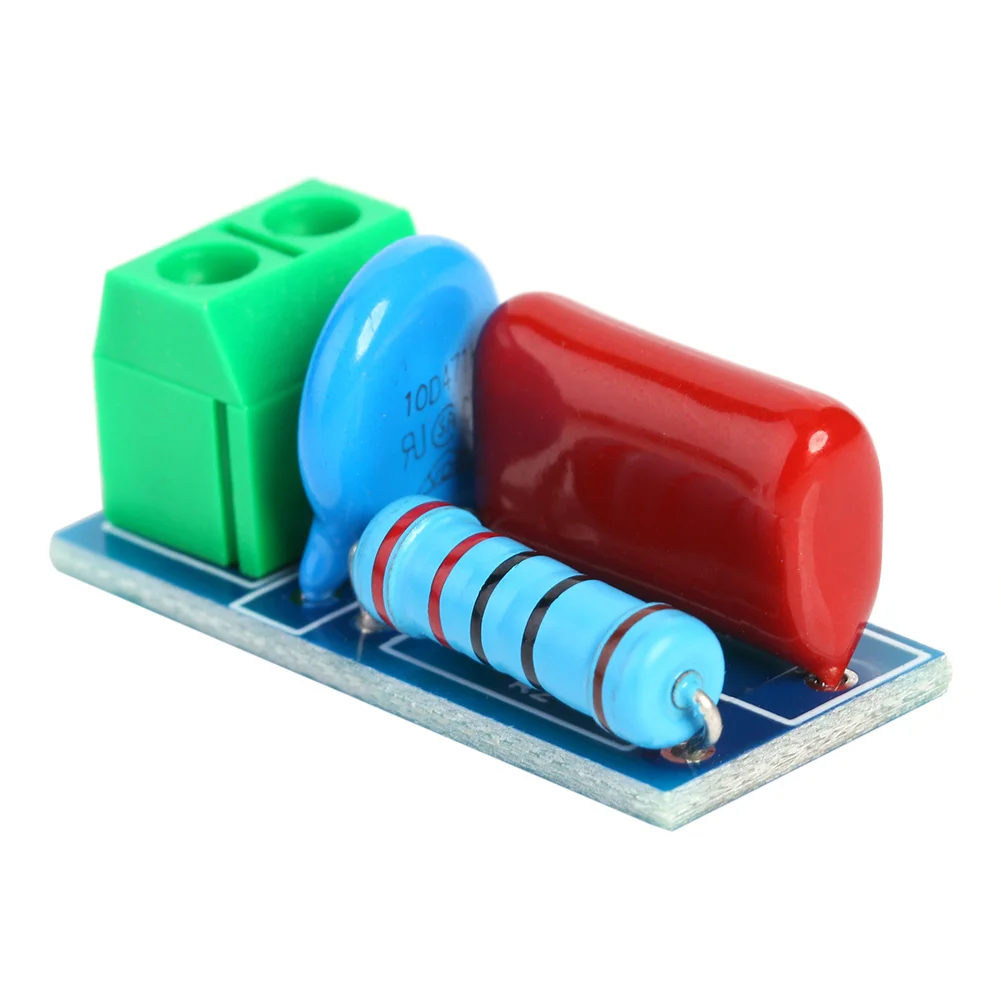

Relay Contact Protection Resistance Surge RC Absorption Circuit Module

RC Absorption Circuit Module Relay Contact Protection Resistance Surge AC/DC 5V-400V Snubber Board
Description:
RC absorption circuit is also called RC Snubber circuit. It is a circuit structure in which resistors and capacitors are connected in series and connected in parallel with switching devices. It is used to improve the voltage and current waveforms of electronic power devices when they are turned on and off. The RC absorption circuit module can prevent the induced electromotive force generated at the moment of turning on and off of the inductive load from causing damage to the switching devices such as relays and thyristors, preventing electromagnetic interference and increasing the anti-interference ability of the microcontroller.

Feature:
Suitable for AC or DC 5~400V inductive load (load less than 1000W) to protect relay contacts or thyristors.
RC absorption circuit absorbs the induced electromotive force of the inductive load.
There is a varistor to prevent excessive voltage fluctuations and excessive currents from causing adhesion of relay contacts.
Provide circuit anti-interference ability.
Use crimping terminals to make wiring more convenient.

Specification:
Product Size: 30 X 13 X 12mm/1.18 X 0.51 X 0.47"

Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.

Package Content:
1 X RC Absorption Circuit Module
